FR5-C

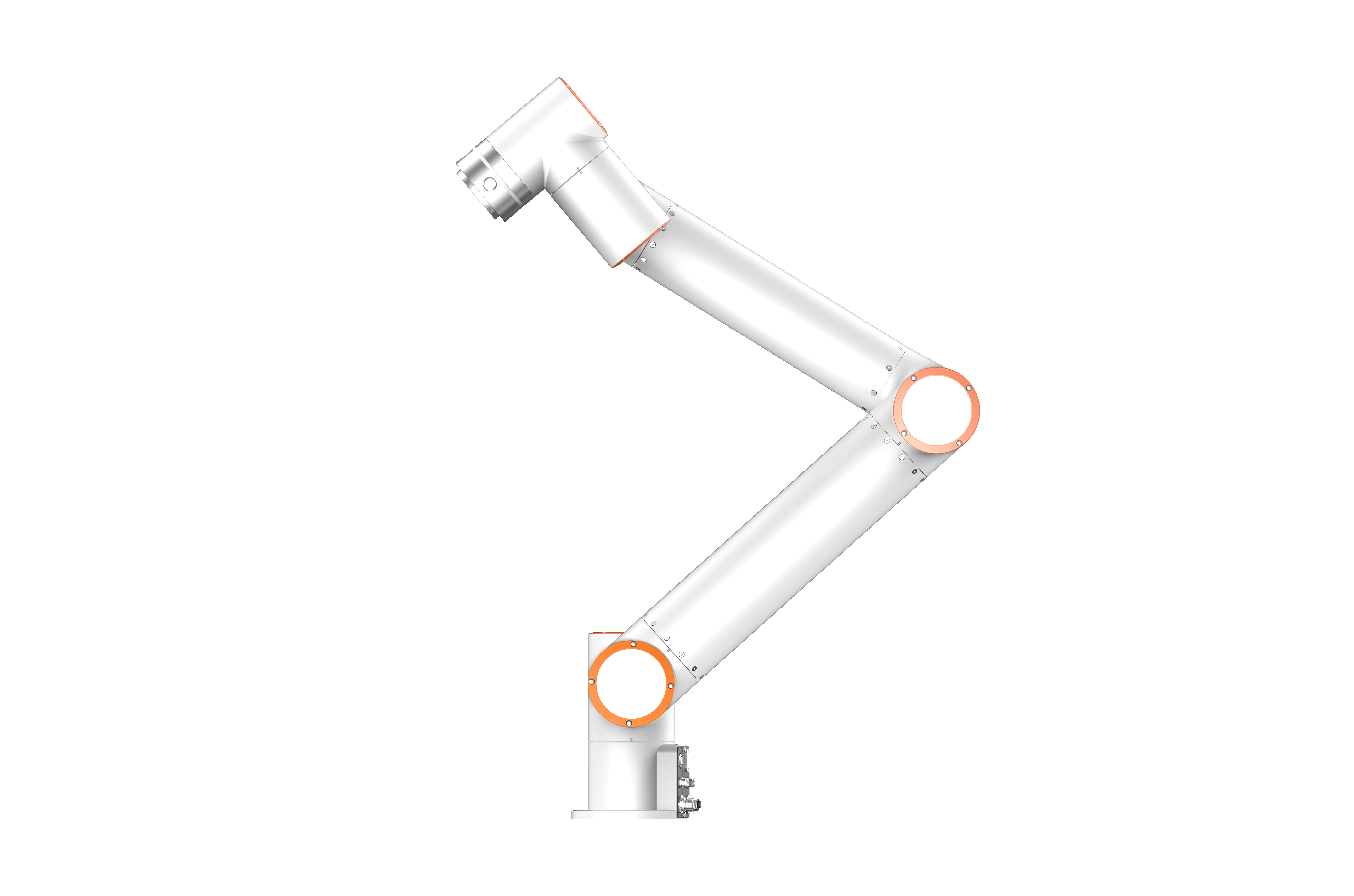

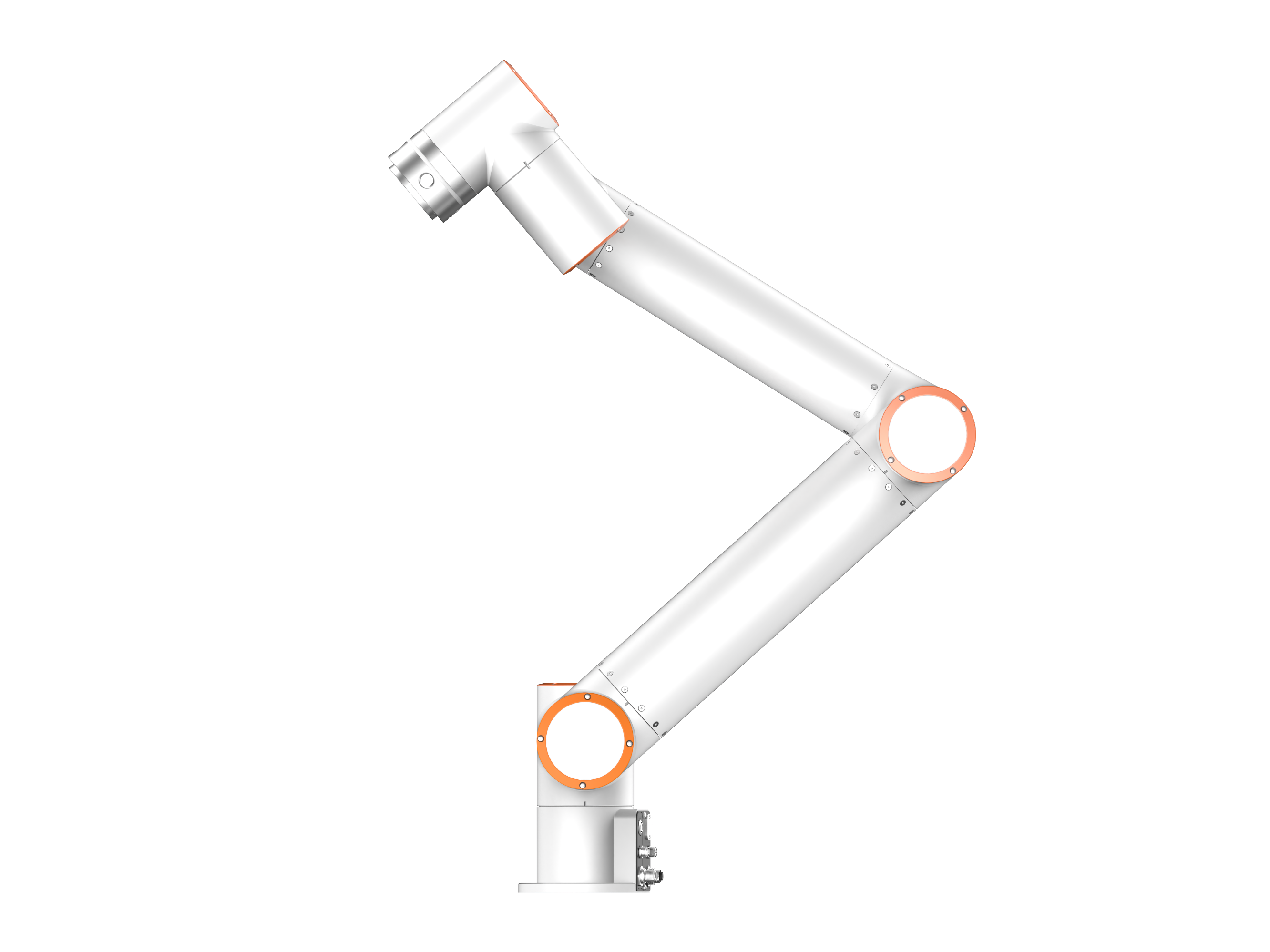

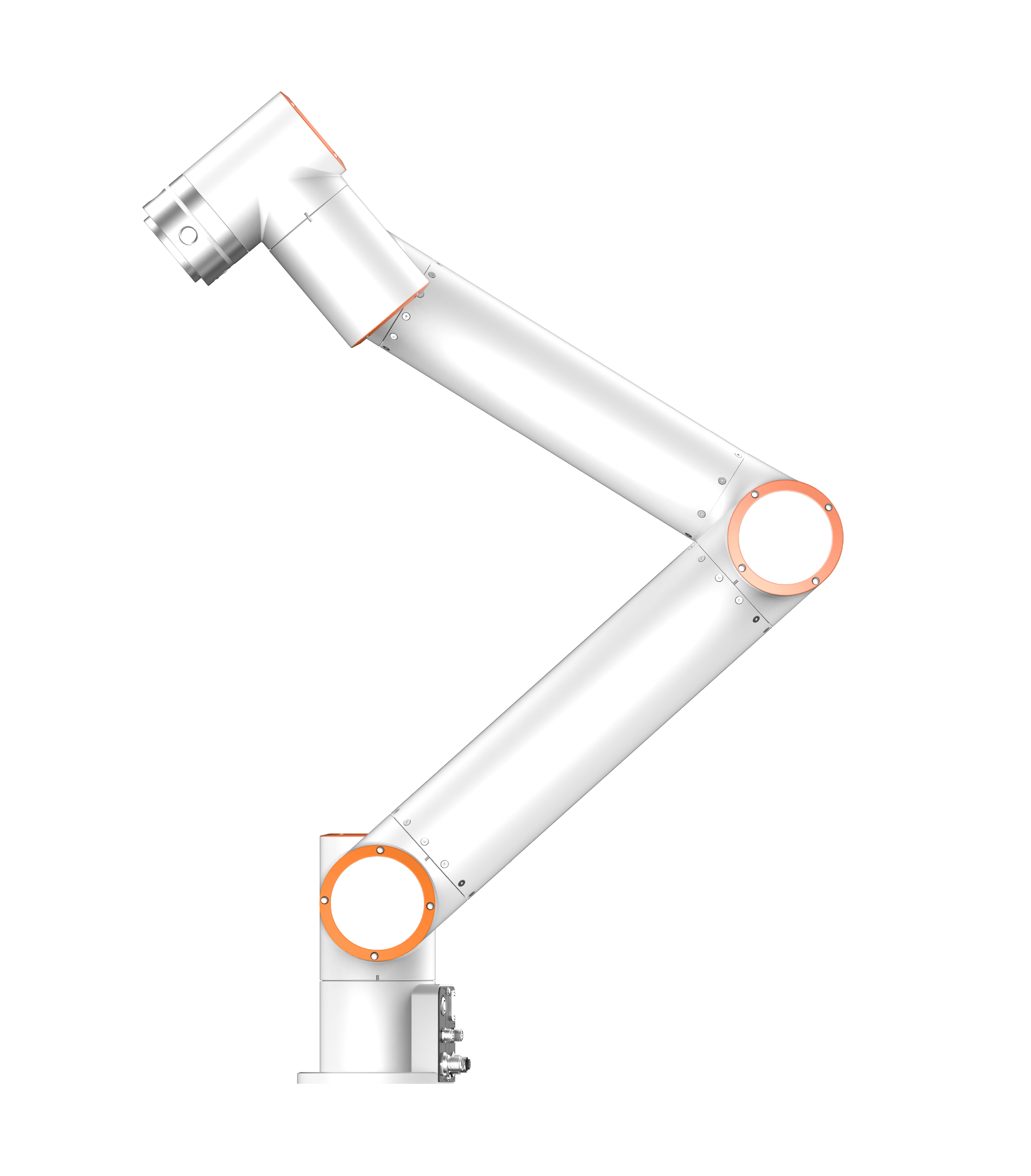

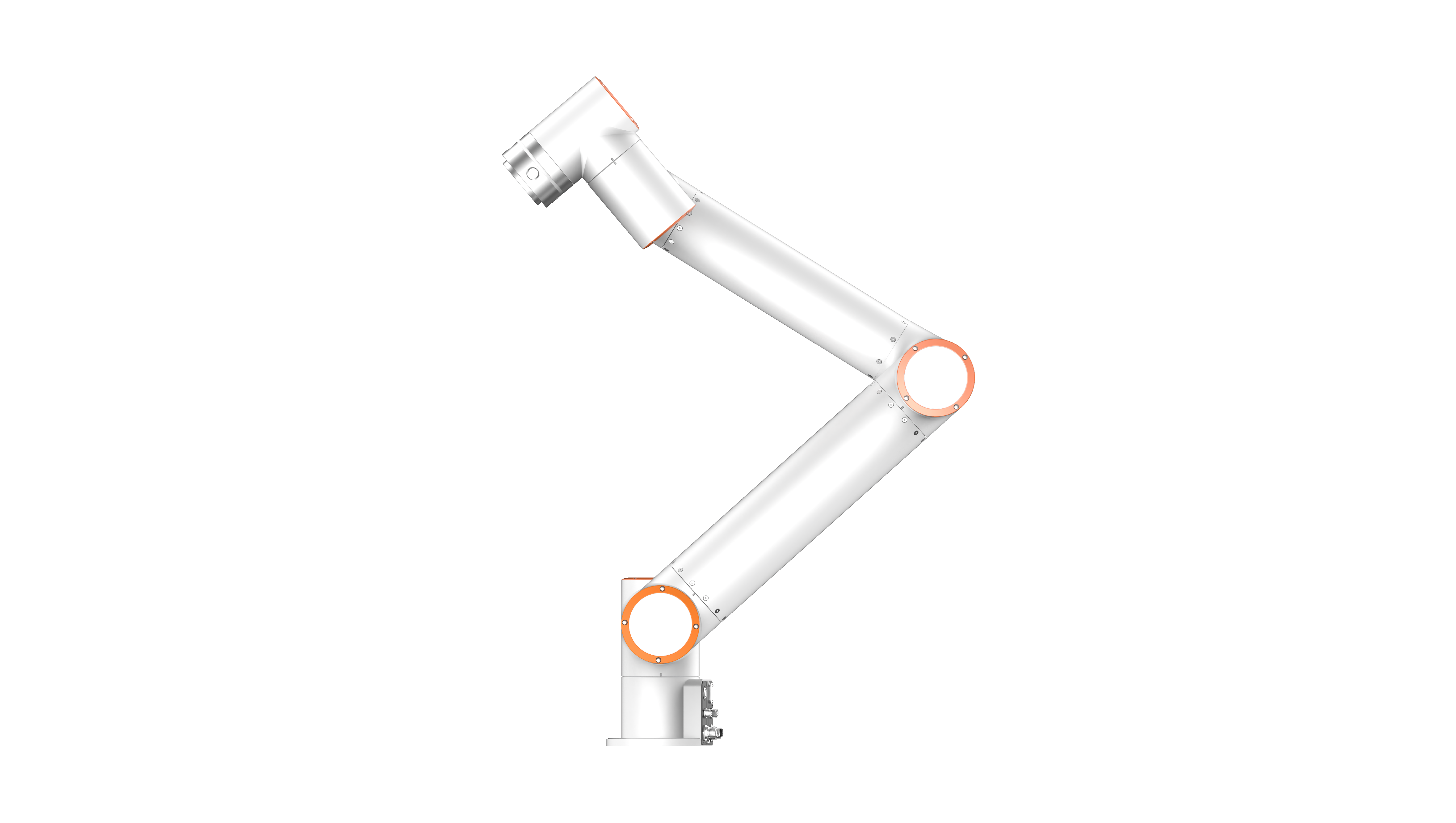

FAIRINO-FR5-C

Featuring a lightweight design and flexible deployment, FR5-C is well-suited for diverse scenarios such as new retail and elderly care, opening up new possibilities for service robotics applications.
  • Payload
    4kg(Max:5kg)
  • Reach
    922mm
  • Repeatability
    ±0.05mm
Request Quote
  • ROBOT ARM
  • SAFTY BOX
  • TEACH PENDANT
Specification 1 Payload 4kg (Max:5kg)
Reach 922mm
Degrees of freedom 6 rotating joints
HMI 10.1 inch teach pendant or mobile terminal Web APP
Pose repeatability per ISO 9283 ±0.05mm
Axis movement Working range Maximum speed
Base ±175° ±180°/s
Shoulder ﹢85°/﹣265° ±180°/s
Elbow ±160° ±180°
Wrist1 +85°/﹣265° ±180°/s
Wrist2 ±175° ±180°/s
Wrist3 ±360° ±180°/s
Typical TCP speed 1m/s
Features IP classification IP54 (IP65 Optional)
Noise ＜65db
Robot mounting Any orientation
I/O Ports DI 2 DO 2
AI 1 AO 1
High speed pulse input 2
Tool I/O power supply 24V/1.5A
Physical Footprint 125mm
Weight ≈11.8kg
Operating temperature 0-45℃
Operating humidity 90%RH (non-condensing)
Materials Aluminium、Steel
Expand More Packup More
Features IP classification IP54
Button function Manual/Automatic, Drag & Drop, Point Recording, Match or Not with Pushbutton Box, Start/Stop, Shutdown
Communication TCP/IP
Network transfer rate 100M
Power over ethernet standard POE
Physical L*W*H 130*60*66mm (No protrusions)
Weight 490g
Materials ABS
Cable length 5m
Number of keys ≥20w
Expand More Packup More
Features IP classification IP54
Operating humidity 90%RH(non-condensing)
Display resolution 1280*800 pixels
Physical L*W*H 268*210*88mm
Weight 1.6kg
Materials ABS、PP
Cable length 5m
Expand More Packup More

Product Feature

  • 01
    Excellent Performance
    Efficiency First
    Self-produced and self-researched core components, with patented design solutions, repeat positioning accuracy ±0.02mm, modular design to ensure stability.
  • 02
    Flexible Deployment
    No Entry Threshold
    Graphical programming, drag and drop robot programming, real-time and high stability, can be installed in any position of the production line, easy replacing, space saving.
  • 03
    Efficient Protection
    Perfect Adaptation
    IP66 protection level certificate, perfectly applicable to all kinds of application environments.
  • 04
    Complete Ecosystem
    Convenient Integration
    Support ROS secondary development, self-developed open platform, to meet more diverse needs, support a variety of communication protocols.Provide convenience for robot integrators.

Customize Your Intelligent Solutions

  • Moxibustion Robot
  • Welding Robot
  • Screw-Locking Robot
  • Plasma Cutting Robot

Customize Your
Intelligent Solutions

FAIRINO provide in-depth intelligent solutions for collaborative robots in various industries to meet the specific needs of our customers.
